In stock
SKU
KX23-15FBE

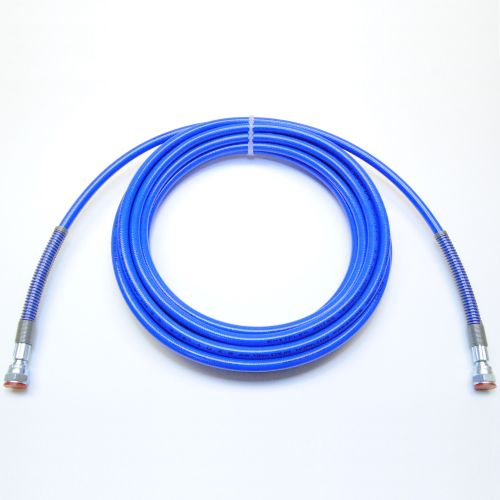

KX23-15FBE - 3/16" ID x 3500 PSI x 15' FITTINGS: 1/4" NPSM (F)
$33.75
Series: KX23 - 3/16" x 3500 PSI
Length: 15'
Fittings: FBE - 1/4" NPSM (F) swivel both ends
3/16" internal diameter hose with a 3,500 PSI maximum working pressure. Constructed with a polyamide core, two polyester textile fiber braids and a polyurethane cover. Cut to 15' in length and fitted with 1/4" female fittings.
| Bedford Equivalent | 13-795 |
|---|---|
| CRP Industries Equivalent | 1004AV15FXF |
| Finishing Brands Equivalent | Binks 71-8087 |
| Graco Equivalent | 214-981 |
| Poly-flow Equivalent | 4710-03-015 |
| Wagner Equivalent | 550-221 |
| Core | Polyamide |
| Braid | Polyester Textile Fiber |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.1875 inches |
| Hose I.D. - Millimeters | 4.763 mm |
| Hose O.D. - Inches | 0.402 inches |
| Hose O.D. - Millimeters | 10.200 mm |
| Minimum Bend Radius - Inches | 1.575 inches |
| Minimum Bend Radius - Millimeters | 40.000 mm |
| Maximum Working Pressure | 3,500 PSI |
| Minimum Burst Pressure | 14,000 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
