In stock
SKU
PA12- 3FM

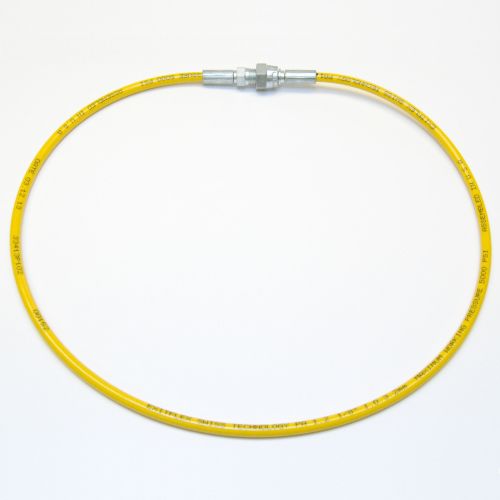

PA12- 3FM - 1/8" ID x 5000 PSI x 3' FITTINGS: 1/4" NPSM (F) x NPT (M)
$16.25
Series: PA12 - 1/8" x 5000 PSI
Length: 3'
Fittings: FM - 1/4" NPSM (F) x 1/4" NPT (M)
1/8" internal diameter hose with a 5,000 PSI maximum working pressure. Constructed with a polyamide core, a high tensile brass plated carbon steel braid and a polyurethane cover. Cut to 3' in length and fitted with 1/4" female by 1/4" male fittings.
| CRP Industries Equivalent | 1003K3FXM |
|---|---|
| Finishing Brands Equivalent | Binks 71-6844 |
| Core | Polyamide |
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.125 inches |
| Hose I.D. - Millimeters | 3.175 mm |
| Hose O.D. - Inches | 0.272 inches |
| Hose O.D. - Millimeters | 6.900 mm |
| Minimum Bend Radius - Inches | 0.984 inches |
| Minimum Bend Radius - Millimeters | 25.000 mm |
| Maximum Working Pressure | 5,000 PSI |
| Minimum Burst Pressure | 20,000 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
