In stock
SKU
PA13- 3FM

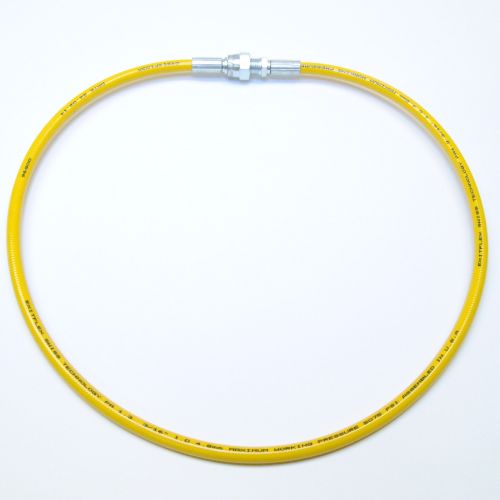

PA13- 3FM - 3/16" ID x 5075 PSI x 3' FITTINGS: 1/4" NPSM (F) x NPT (M)
$15.25
Series: PA13 - 3/16" x 5075 PSI
Length: 3'
Fittings: FM - 1/4" NPSM (F) x 1/4" NPT (M)
3/16" internal diameter hose with a 5,075 PSI maximum working pressure. Constructed with a polyamide core, a high tensile brass plated carbon steel braid and a polyurethane cover. Cut to 3' in length and fitted with 1/4" female by 1/4" male fittings.
| Core | Polyamide |
|---|---|
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.1875 inches |
| Hose I.D. - Millimeters | 4.763 mm |
| Hose O.D. - Inches | 0.366 inches |
| Hose O.D. - Millimeters | 9.300 mm |
| Minimum Bend Radius - Inches | 1.378 inches |
| Minimum Bend Radius - Millimeters | 35.000 mm |
| Maximum Working Pressure | 5,075 PSI |
| Minimum Burst Pressure | 20,300 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
