In stock
SKU
PA26-25FBE
PA26-25FBE - 3/8" ID x 5800 PSI x 25' FITTINGS: 3/8" NPSM (F)
$95.00
Series: PA26 - 3/8" x 5800 PSI
Length: 25'
Fittings: FBE – 3/8" NPSM (F) swivel both ends

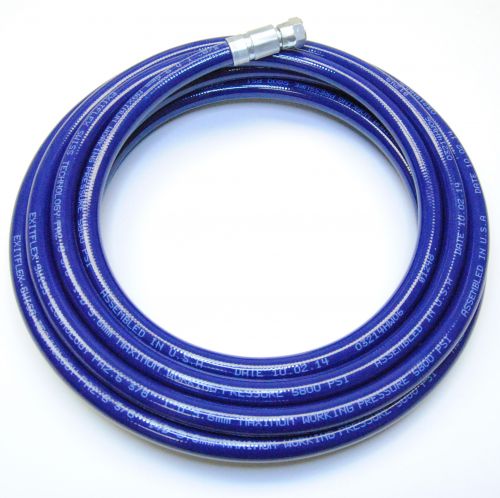

3/8" internal diameter hose with a 5,800 PSI maximum working pressure. Constructed with a polyamide core, two high tensile brass plated carbon steel braids and a polyurethane cover. Cut to 25' in length and fitted with 3/8" female fittings.
| CRP Industries Equivalent | 2010UK25FXF |
|---|---|
| Graco Equivalent | H53825 |
| Poly-flow Equivalent | 4910-06-025 |
| Core | Polyamide |
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.375 inches |
| Hose I.D. - Millimeters | 9.525 mm |
| Hose O.D. - Inches | 0.689 inches |
| Hose O.D. - Millimeters | 17.500 mm |
| Minimum Bend Radius - Inches | 2.756 inches |
| Minimum Bend Radius - Millimeters | 70.000 mm |
| Maximum Working Pressure | 5,800 PSI |
| Minimum Burst Pressure | 23,200 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
