In stock
SKU
PAT24-25FBE

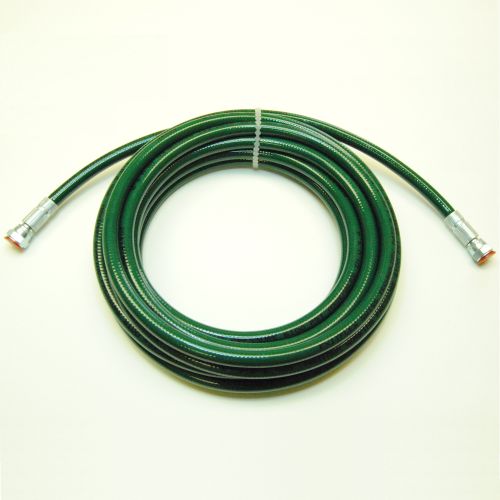

PAT24-25FBE - 1/4" ID x 6100 PSI x 25' FITTINGS: 1/4" NPSM (F)
$59.75
Series: PAT24 - 1/4" x 6100 PSI
Length: 25'
Fittings: FBE - 1/4" NPSM (F) swivel both ends
1/4" internal diameter hose with a 6,100 PSI maximum working pressure. Constructed with a polyamide core, one carbon steel and one polyester fiber braid and a polyurethane cover. Cut to 25' in length and fitted with 1/4" female fittings.
| Core | Polyamide |
|---|---|
| Braid | One Carbon Steel and One Polyester Fiber |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.250 inches |
| Hose I.D. - Millimeters | 6.350 mm |
| Hose O.D. - Inches | 0.508 inches |
| Hose O.D. - Millimeters | 12.900 mm |
| Minimum Bend Radius - Inches | 1.575 inches |
| Minimum Bend Radius - Millimeters | 40.000 mm |
| Maximum Working Pressure | 6,100 PSI |
| Minimum Burst Pressure | 24,400 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
