In stock
SKU
HD24R-50FBE

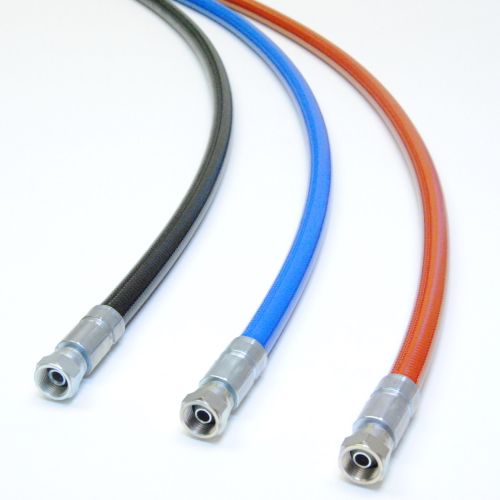

HD24R-50FBE - 1/4" ID x 9750 PSI x 50' FITTINGS: 1/4" NPSM (F)
$199.50
Series: HD24 - 1/4" x 9750 PSI
Length: 50'
Fittings: FBE - 1/4" NPSM (F) swivel both ends
1/4" internal diameter hose with a 9,750 PSI maximum working pressure. Constructed with a polyamide core, one aramid and one carbon steel braid and a polyurethane cover. Cut to 50' in length and fitted with 1/4" female fittings.
| Core | Polyamide |
|---|---|
| Braid | One Aramid and One Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.250 inches |
| Hose I.D. - Millimeters | 6.350 mm |
| Hose O.D. - Inches | 0.535 inches |
| Hose O.D. - Millimeters | 13.600 mm |
| Minimum Bend Radius - Inches | 1.969 inches |
| Minimum Bend Radius - Millimeters | 50.000 mm |
| Maximum Working Pressure | 9,750 PSI |
| Minimum Burst Pressure | 39,000 PSI |
| Temperature Range - Fahrenheit | -40 to +210 F |
| Temperature Range - Celsius | -40 to +99 C |
