In stock
SKU
KX26-50FM

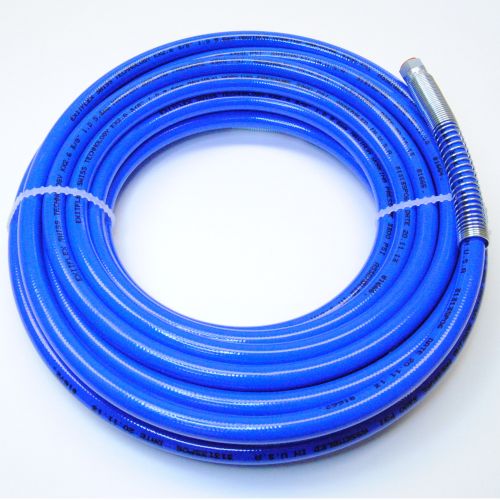

KX26-50FM - 3/8" ID x 3300 PSI x 50' FITTINGS: 3/8" NPSM (F) x NPT (M)
$99.50
Series: KX26 - 3/8" x 3300 PSI
Length: 50'
Fittings: FM - 3/8" NPSM (F) x 3/8" NPT (M)
3/8" internal diameter hose with a 3,300 PSI maximum working pressure. Constructed with a polyamide core, two polyester textile fiber braids and a polyurethane cover. Cut to 50' in length and fitted with 3/8" female by 3/8" male fittings.
| Core | Polyamide |
|---|---|
| Braid | Polyester Textile Fiber |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.375 inches |
| Hose I.D. - Millimeters | 9.525 mm |
| Hose O.D. - Inches | 0.661 inches |
| Hose O.D. - Millimeters | 16.800 mm |
| Minimum Bend Radius - Inches | 3.150 inches |
| Minimum Bend Radius - Millimeters | 80.000 mm |
| Maximum Working Pressure | 3,300 PSI |
| Minimum Burst Pressure | 13,200 PSI |
| Temperature Range - Fahrenheit | -40 to +175 F |
| Temperature Range - Celsius | -40 to +79 C |
