In stock
SKU
PA12-15JIS

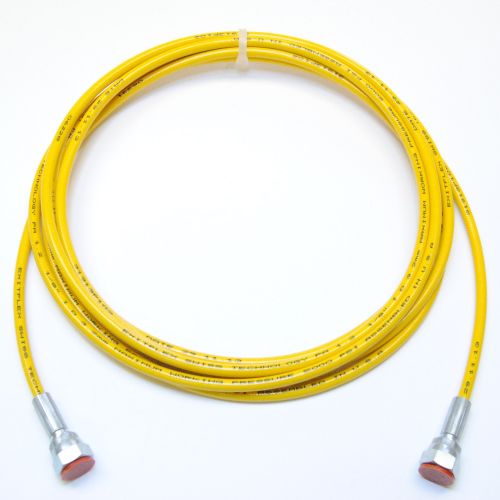

PA12-15JIS - 1/8" ID x 5000 PSI x 15' FITTINGS: JIC#5 SS 1/2 x 20 (F)
$51.10
Series: PA12 - 1/8" x 5000 PSI x Yellow
Length: 15'
Fittings: JIS - JIC#5 stainless 1/2 x 20 (F) swivel both ends
1/8" internal diameter hose with a 5,000 PSI maximum working pressure. Constructed with a polyamide core, a high tensile brass plated carbon steel braid and a yellow polyurethane cover. Cut to 15' in length and fitted with JIC#5 female stainless steel fittings.
| Core | Polyamide |
|---|---|
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.125 inches |
| Hose I.D. - Millimeters | 3.175 mm |
| Hose O.D. - Inches | 0.272 inches |
| Hose O.D. - Millimeters | 6.900 mm |
| Minimum Bend Radius - Inches | 0.984 inches |
| Minimum Bend Radius - Millimeters | 25.000 mm |
| Maximum Working Pressure | 5,000 PSI |
| Minimum Burst Pressure | 20,000 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
