In stock
SKU
PA13-50JIC
PA13-50JIC - 3/16" ID x 5075 PSI x 50' FITTINGS: JIC#5 1/2 x 20 (F)
$65.75
Series: PA13 - 3/16" x 5075 PSI x Yellow
Length: 50'
Fittings: JIC - JIC#5 1/2 x 20 (F) swivel both ends

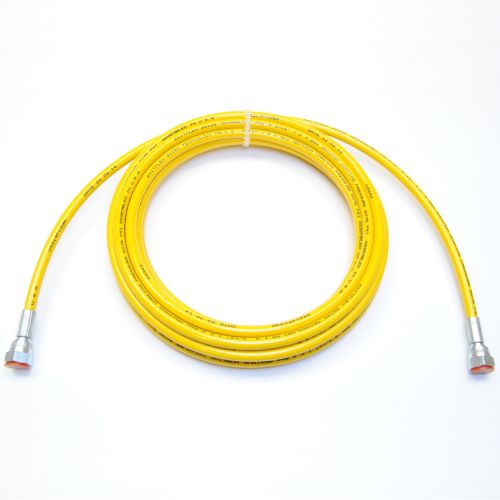

3/16" internal diameter hose with a 5,075 PSI maximum working pressure. Constructed with a polyamide core, a high tensile brass plated carbon steel braid and a yellow polyurethane cover. Cut to 50' in length and fitted with JIC#5 female fittings.
| Core | Polyamide |
|---|---|
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.1875 inches |
| Hose I.D. - Millimeters | 4.763 mm |
| Hose O.D. - Inches | 0.366 inches |
| Hose O.D. - Millimeters | 9.300 mm |
| Minimum Bend Radius - Inches | 1.378 inches |
| Minimum Bend Radius - Millimeters | 35.000 mm |
| Maximum Working Pressure | 5,075 PSI |
| Minimum Burst Pressure | 20,300 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
