SKU
PA16-25FM

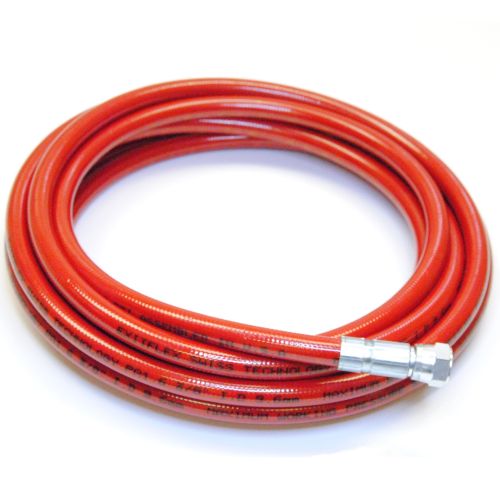

PA16-25FM - 3/8" ID x 3500 PSI x 25' FITTINGS: 3/8" NPSM (F) x NPT (M)
$67.50
Series: PA16 - 3/8" x 3500 PSI
Length: 25'
Fittings: FM - 3/8" NPSM (F) x 3/8" NPT (M)
3/8" internal diameter hose with a 3,500 PSI maximum working pressure. Constructed with a polyamide core, a high tensile brass plated carbon steel braid and a polyurethane cover. Cut to 25' in length and fitted with 3/8" female by 3/8" male fittings.
| Core | Polyamide |
|---|---|
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.375 inches |
| Hose I.D. - Millimeters | 9.525 mm |
| Hose O.D. - Inches | 0.598 inches |
| Hose O.D. - Millimeters | 15.200 mm |
| Minimum Bend Radius - Inches | 2.362 inches |
| Minimum Bend Radius - Millimeters | 60.000 mm |
| Maximum Working Pressure | 3,500 PSI |
| Minimum Burst Pressure | 14,000 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
