In stock
SKU
PA26-50FM
PA26-50FM - 3/8" ID x 5800 PSI x 50' FITTINGS: 3/8" NPSM (F) x NPT (M)
$140.00
Series: PA26 - 3/8" x 5800 PSI
Length: 50'
Fittings: FM - 3/8" NPSM (F) x 3/8" NPT (M)

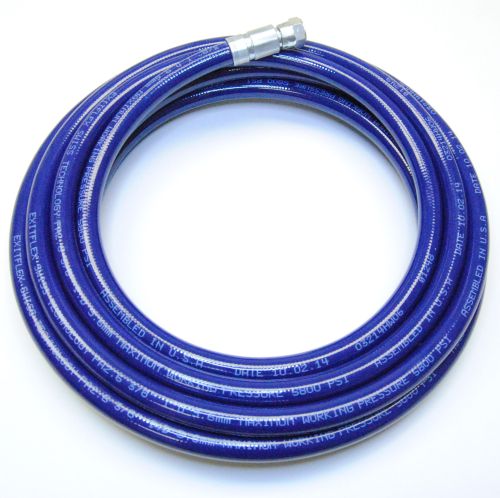

3/8" internal diameter hose with a 5,800 PSI maximum working pressure. Constructed with a polyamide core, two high tensile brass plated carbon steel braids and a polyurethane cover. Cut to 50' in length and fitted with 3/8" female by 3/8" male fittings.
| Core | Polyamide |
|---|---|
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.375 inches |
| Hose I.D. - Millimeters | 9.525 mm |
| Hose O.D. - Inches | 0.689 inches |
| Hose O.D. - Millimeters | 17.500 mm |
| Minimum Bend Radius - Inches | 2.756 inches |
| Minimum Bend Radius - Millimeters | 70.000 mm |
| Maximum Working Pressure | 5,800 PSI |
| Minimum Burst Pressure | 23,200 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
