In stock
SKU
PA28-25FM
PA28-25FM - 1/2" ID x 5000 PSI x 25' FITTINGS: 1/2" NPSM (F) x NPT (M)
$116.50
Series: PA28 - 1/2" x 5000 PSI
Length: 25'
Fittings: FM - 1/2" NPSM (F) x 1/2" NPT (M)

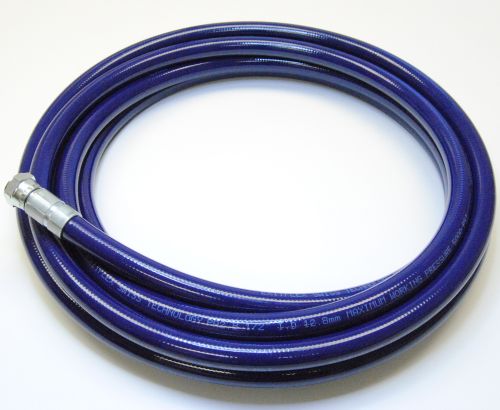

1/2" internal diameter hose with a 5,000 PSI maximum working pressure. Constructed with a polyamide core, two high tensile brass plated carbon steel braids and a polyurethane cover. Cut to 25' in length and fitted with 1/2" female by 1/2" male fittings.
| Core | Polyamide |
|---|---|
| Braid | High Tensile Brass Plated Carbon Steel |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.500 inches |
| Hose I.D. - Millimeters | 12.700 mm |
| Hose O.D. - Inches | 0.846 inches |
| Hose O.D. - Millimeters | 21.500 mm |
| Minimum Bend Radius - Inches | 3.346 inches |
| Minimum Bend Radius - Millimeters | 85.000 mm |
| Maximum Working Pressure | 5,000 PSI |
| Minimum Burst Pressure | 20,000 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
