In stock
SKU
SX24-50FBE

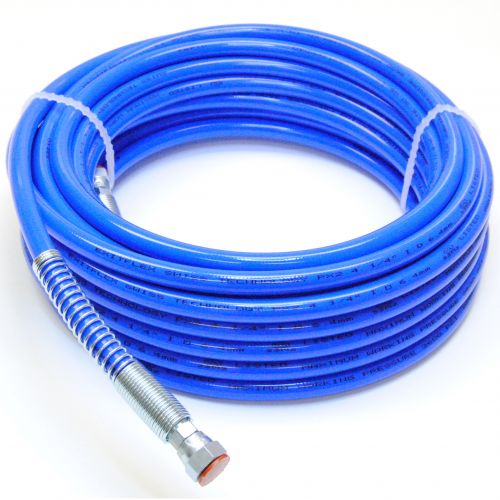

SX24-50FBE - 1/4" ID x 4000 PSI x 50' FITTINGS: 1/4" NPSM (F)
$49.30
Series: SX24 - 1/4" x 4000 PSI
Length: 50'
Fittings: FBE - 1/4" NPSM (F) swivel both ends
1/4" internal diameter hose with a 4,000 PSI maximum working pressure. Constructed with a polyamide core, two polyester textile fiber braids and a polyurethane cover. Cut to 50' in length and fitted with 1/4" female fittings.
| Core | Polyamide |
|---|---|
| Braid | Polyester Textile Fiber |
| Cover | Polyurethane |
| Hose I.D. - Inches | 0.250 inches |
| Hose I.D. - Millimeters | 6.350 mm |
| Hose O.D. - Inches | 0.484 inches |
| Hose O.D. - Millimeters | 12.300 mm |
| Minimum Bend Radius - Inches | 2.165 inches |
| Minimum Bend Radius - Millimeters | 55.000 mm |
| Maximum Working Pressure | 4,000 PSI |
| Minimum Burst Pressure | 16,000 PSI |
| Temperature Range - Fahrenheit | -40 to +200 F |
| Temperature Range - Celsius | -40 to +93 C |
